RWE administration

Project and structural planning for the reinstatement of the ceramic curtain wall

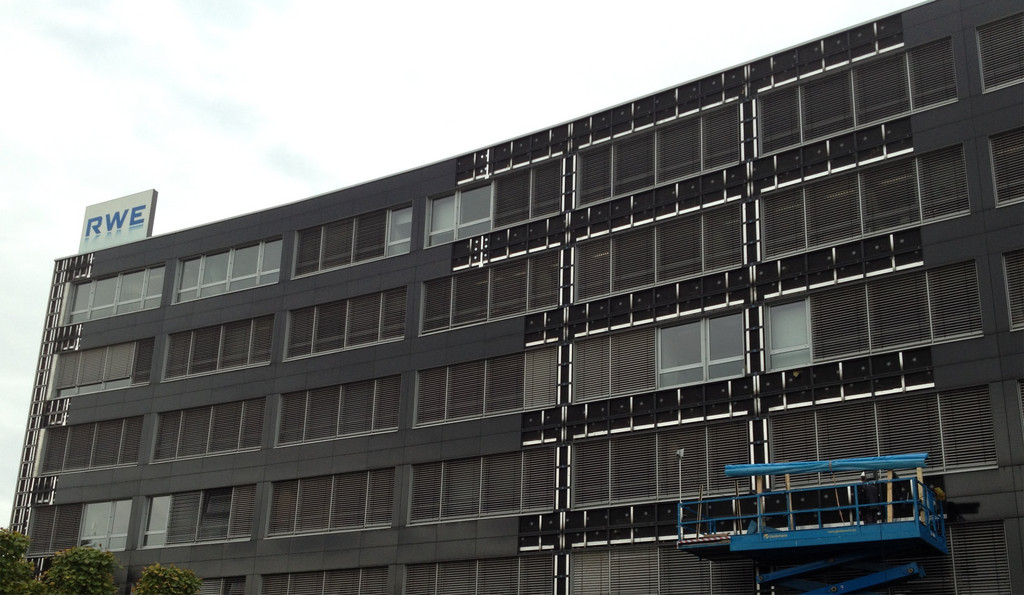

The facade of a 7-storey administrative building for the RWE Service GmbH consists of a curtain wall made of ceramic slabs. Ceramic slabs have also been implemented at the bottom of the overhanging first floor.

Due to the danger of accidents through a loosened ceramic slab, the existing facade was inspected for the sake of adherence of the structural stability.

After the development of a statement concerning the structural stability, as well as a safeguarding concept, ZPP was commissioned with a reinstatement concept. Here, both the technical planning, a cost estimate and the technical implementation were conceptualised.

Subsequently, the complete reinstatement of the facade ensued.

We rendered our services according to project planning in section 1 - interiors of buildings for the service phases 1-8 (basic evaluation, pre-planning, draft planning, approval planning, execution planning, preparation of contract awarding, participating in the contract awarding process, project monitoring - construction supervision and documentation, project supervision/support) and specialist planning in section 1 - structural planning for the service phases 1-6 (basic evaluation, pre-planning, draft planning, approval planning, execution planning, preparation of the contract awarding), both according to HOAI (Official Scale of Fees for Services by Architects and Engineers). Another component were the special services concerning the structural planning according to AHO issue no. 3, and the service area and appreciation for services according to EnEV, AHO issue no. 23.
